Snow Weather Data: Saturday 17th to Sunday 18th May 2008

[NSW Northern Ranges Snow Chase Forecasting Guide] [Australian Severe Weather forum thread]


Model Output Comparison

17/05/2008 00z GFS model run
17/05/2008 00z MLAPS model run

Satellite Photos

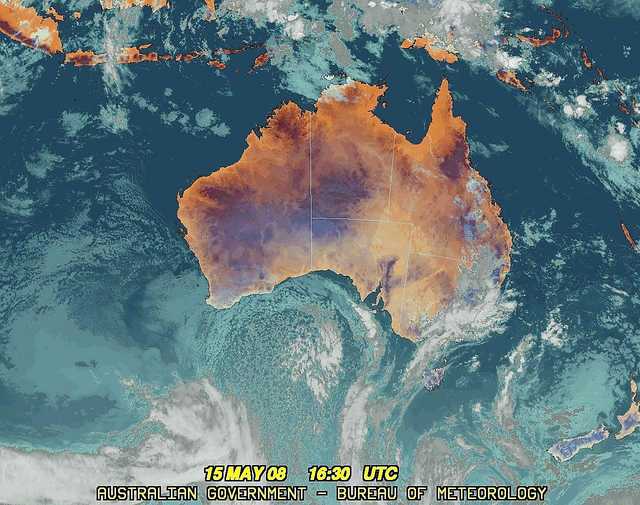

 Infrared satellite loop: 15/05/2008 00z to 18/05/2008 12z [3.6mb]

 Infrared satellite loop: 13/05/2008 00z to 18/05/2008 23z [6.7mb]

Soundings

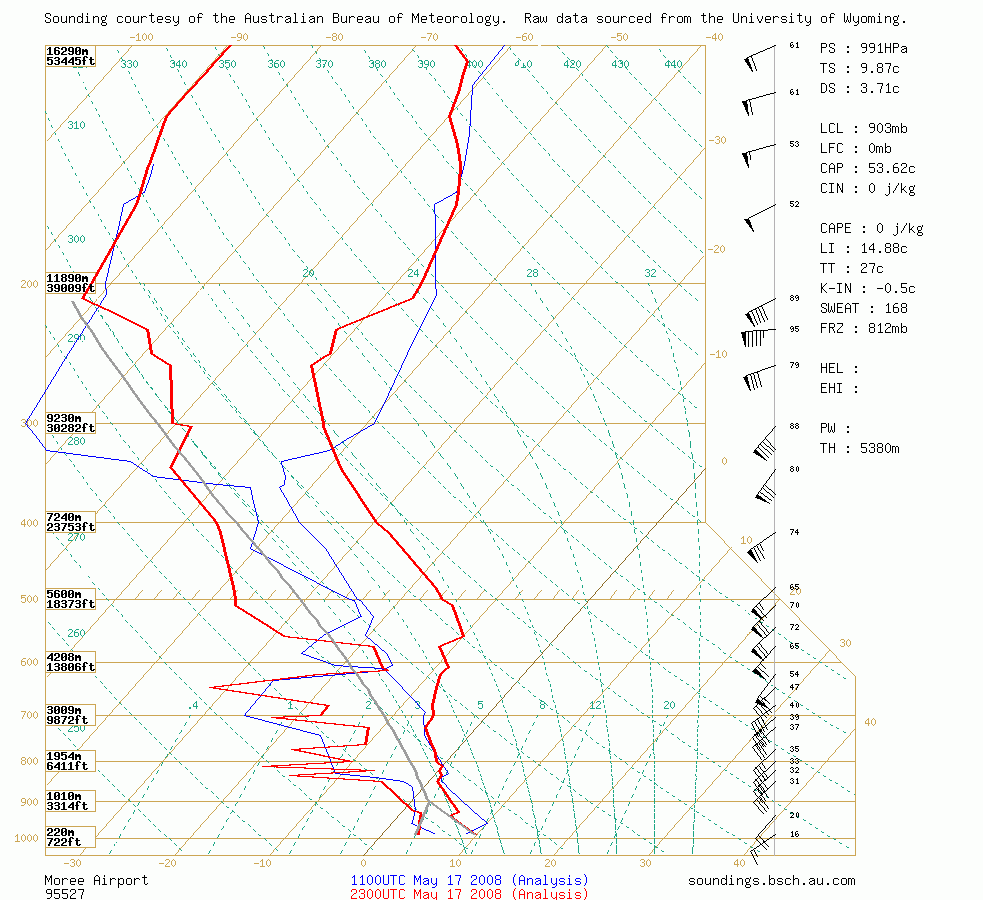

 Moree Soundings 9am and 9pm 17th May and 9am 18th May

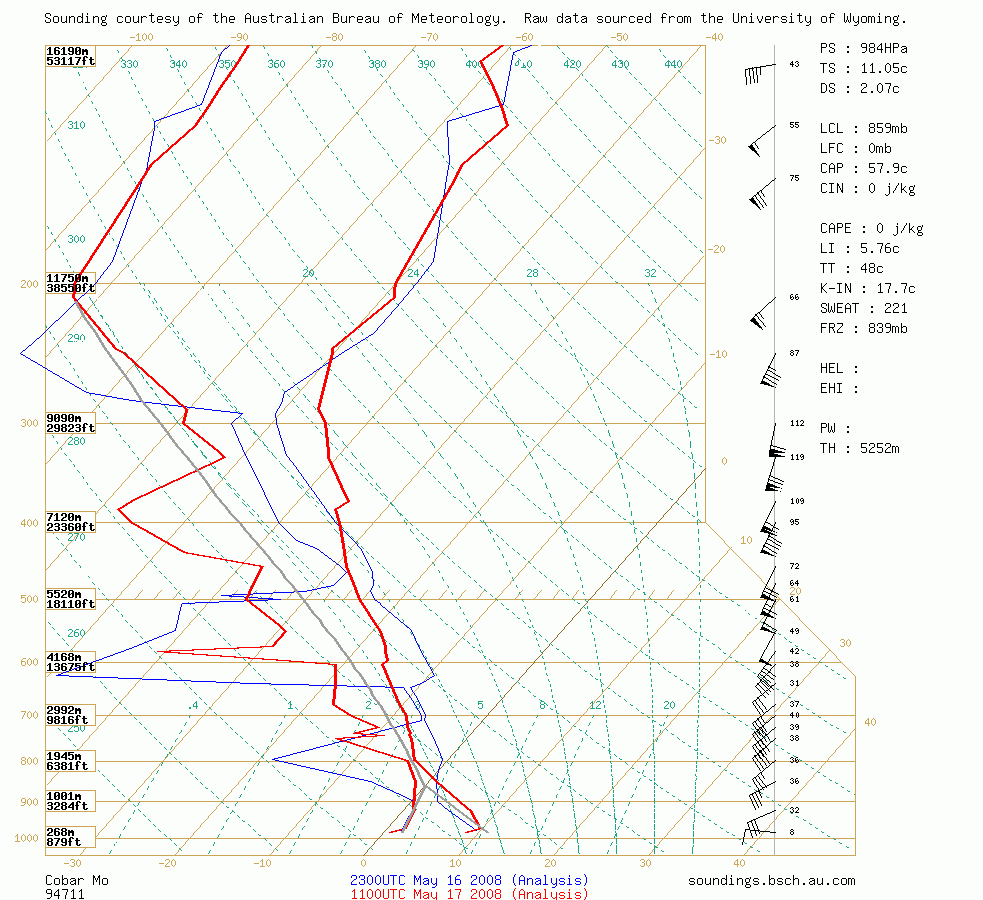

 Cobar Soundings 9am and 9pm 17th May and 9am 18th May

Other Weather Maps

Loop of the 17/05/2008 12z GFS model run: +00 to +18 in 3 hour increments

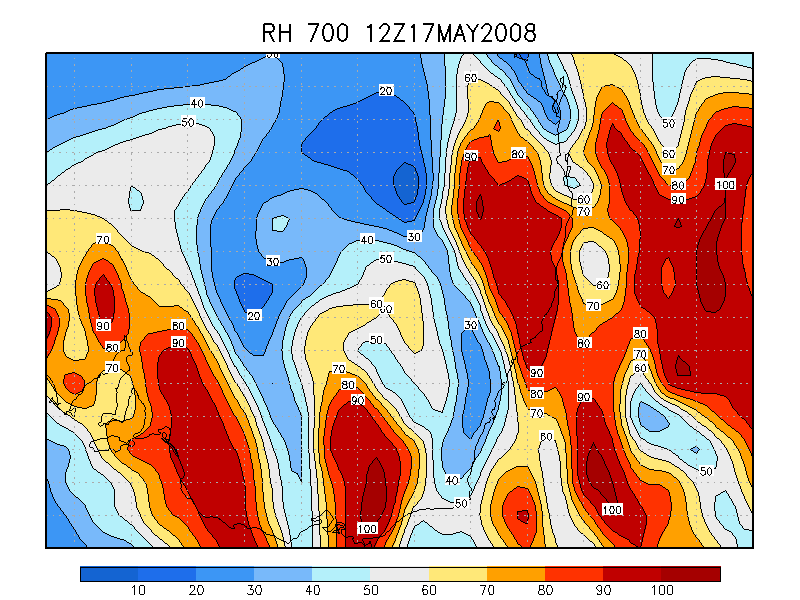

700 hPa Relative Humidity / 850 hPa Temperature

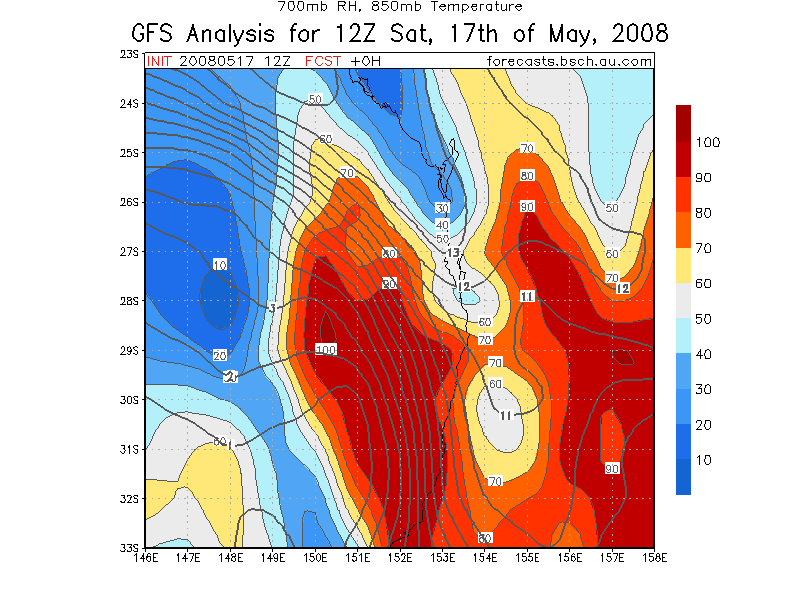

GFS Model Analysis 17/05/2008 12z run

  850 hPa Temp 700 hPa RH 850 hPa Thickness
12z
17th

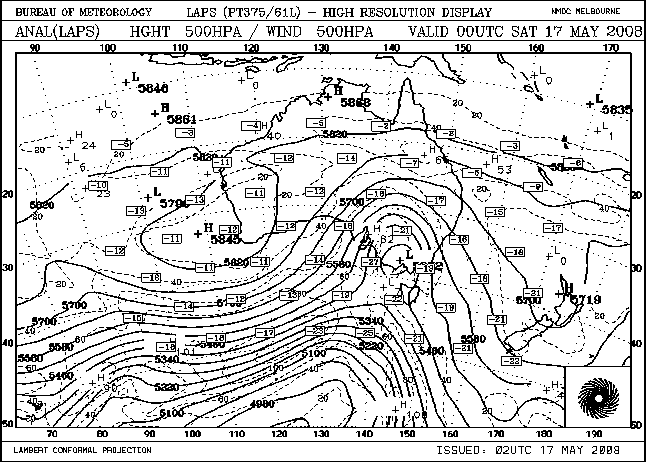

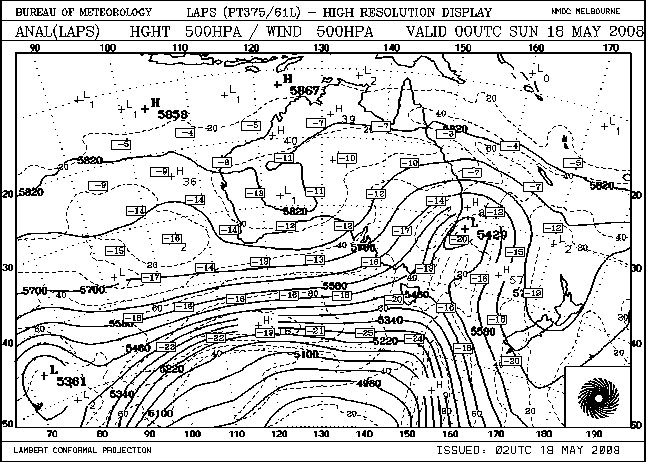

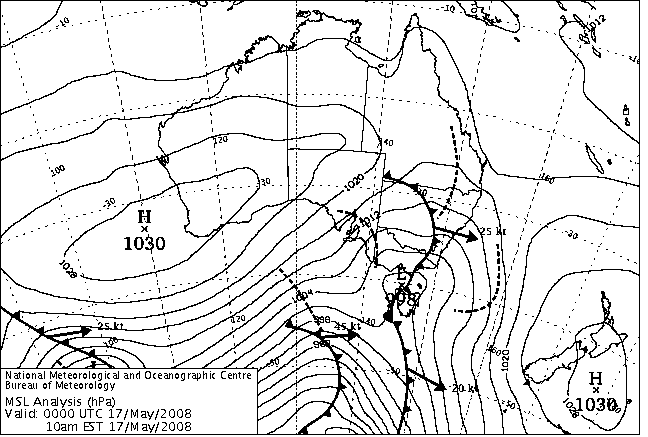

MSL and 500hPa LAPS analysis


Document: 20080517_snow_data.htm
Updated: 2nd June 2008
